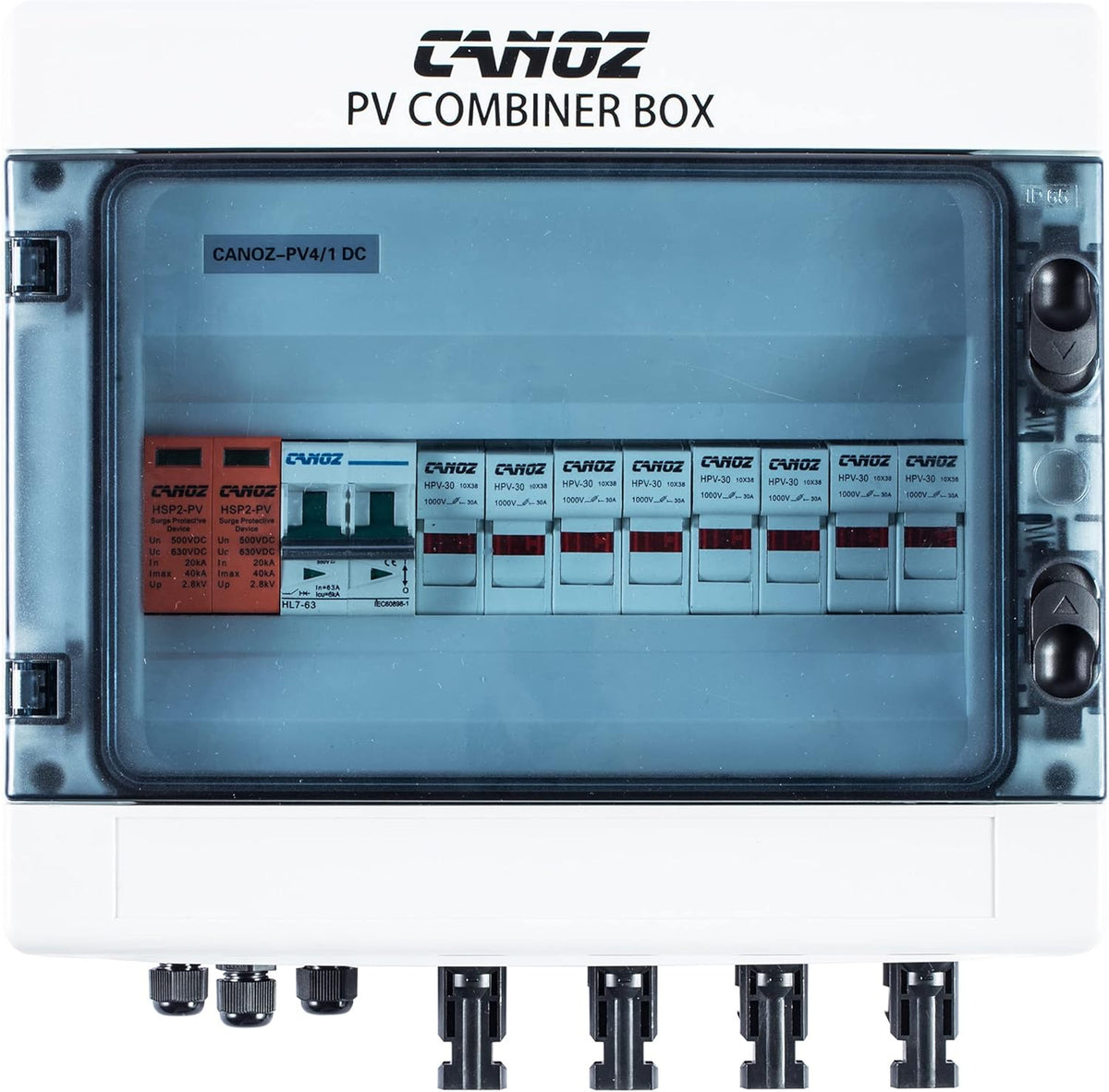

4 String PV Combiner Box with 15A Fuse, 63A Circuit Breaker, Surge Protector and MC4 Connectors G7837
Sale price
$25.90
Regular price $99.86
Skip to product information

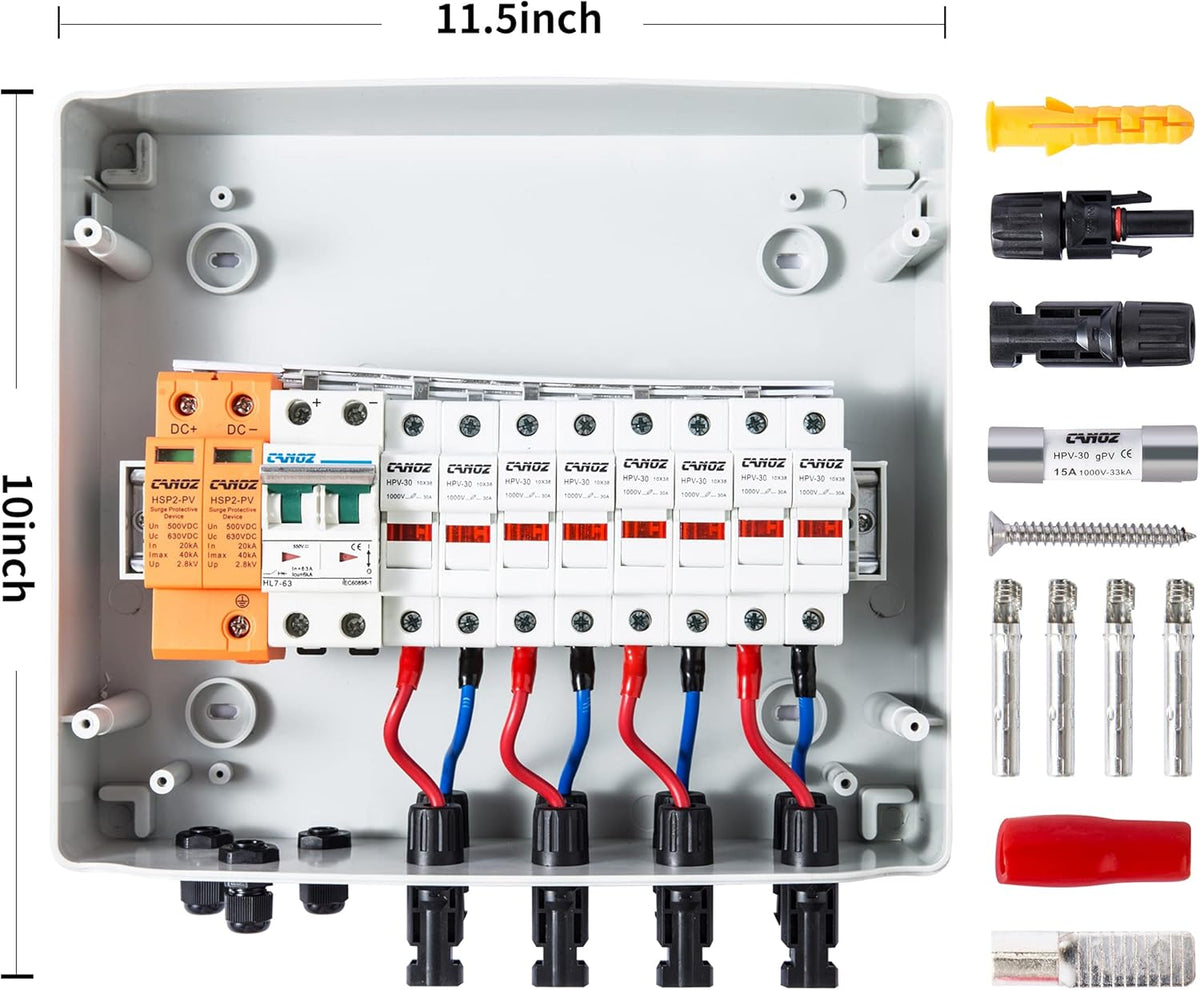

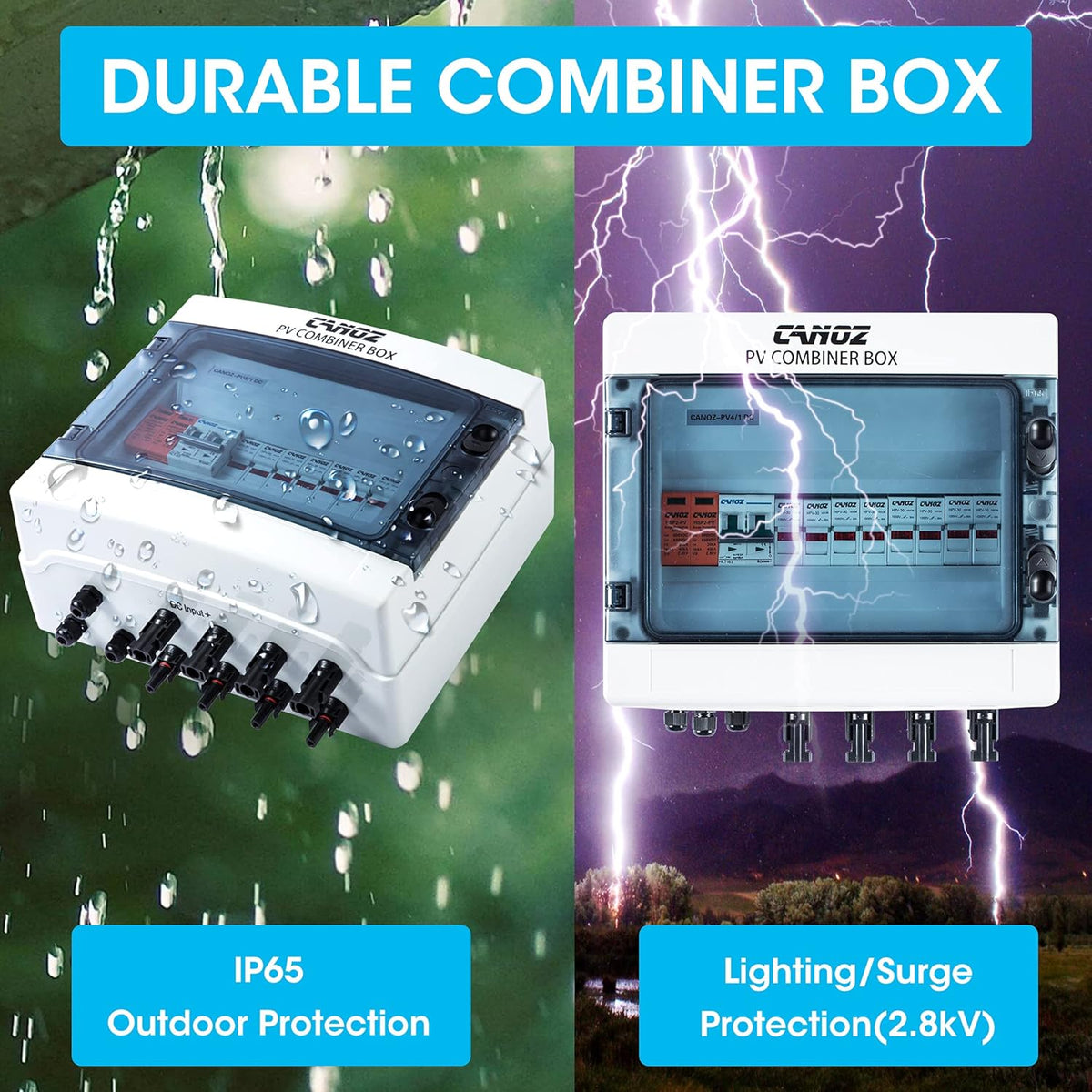

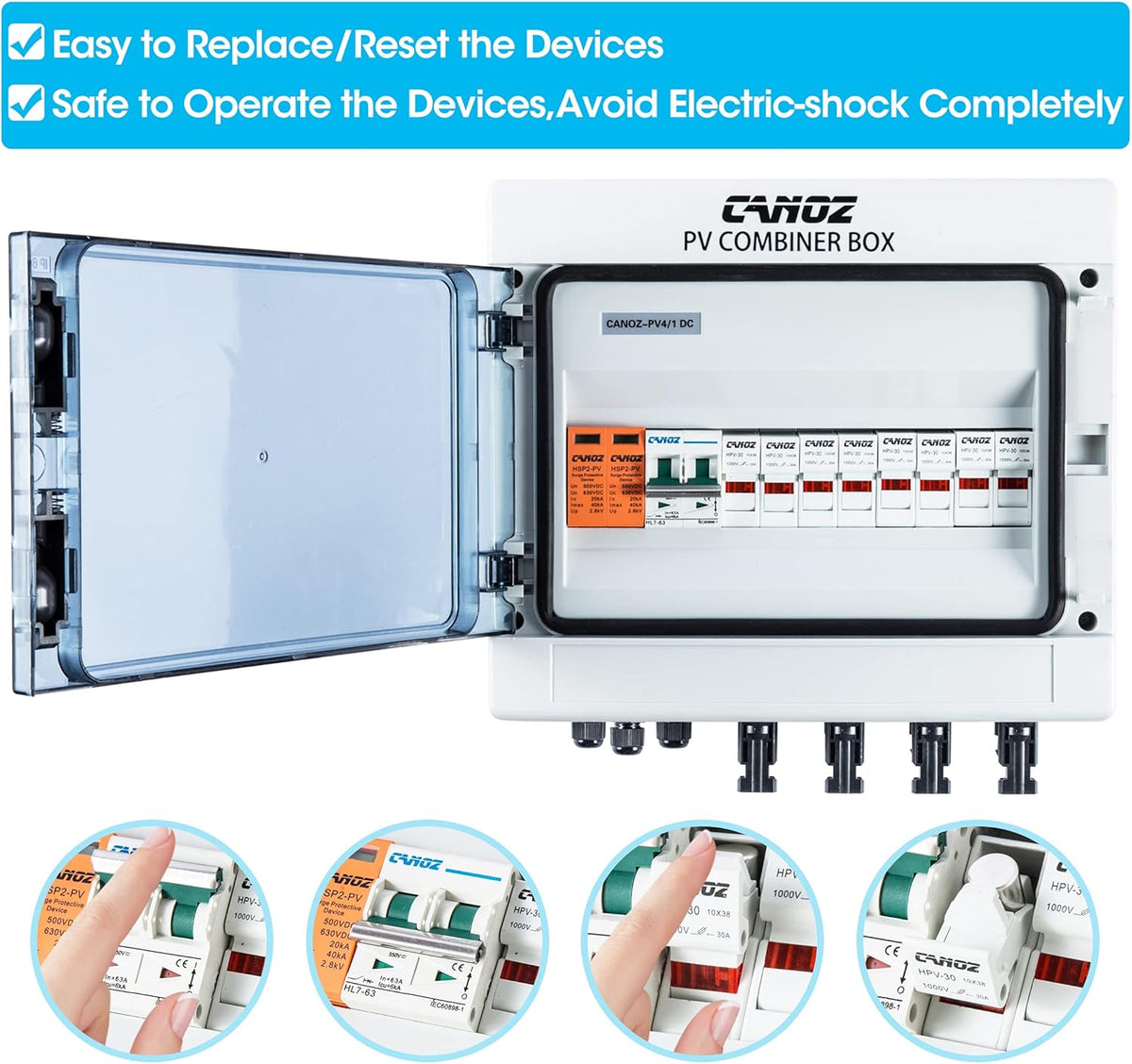

Material: PVC, Weatherproof Grade: IP65, Easy Wall Installation with Mounting Kits, “Casement Window” Operation, Safer and easier compare to other brands.

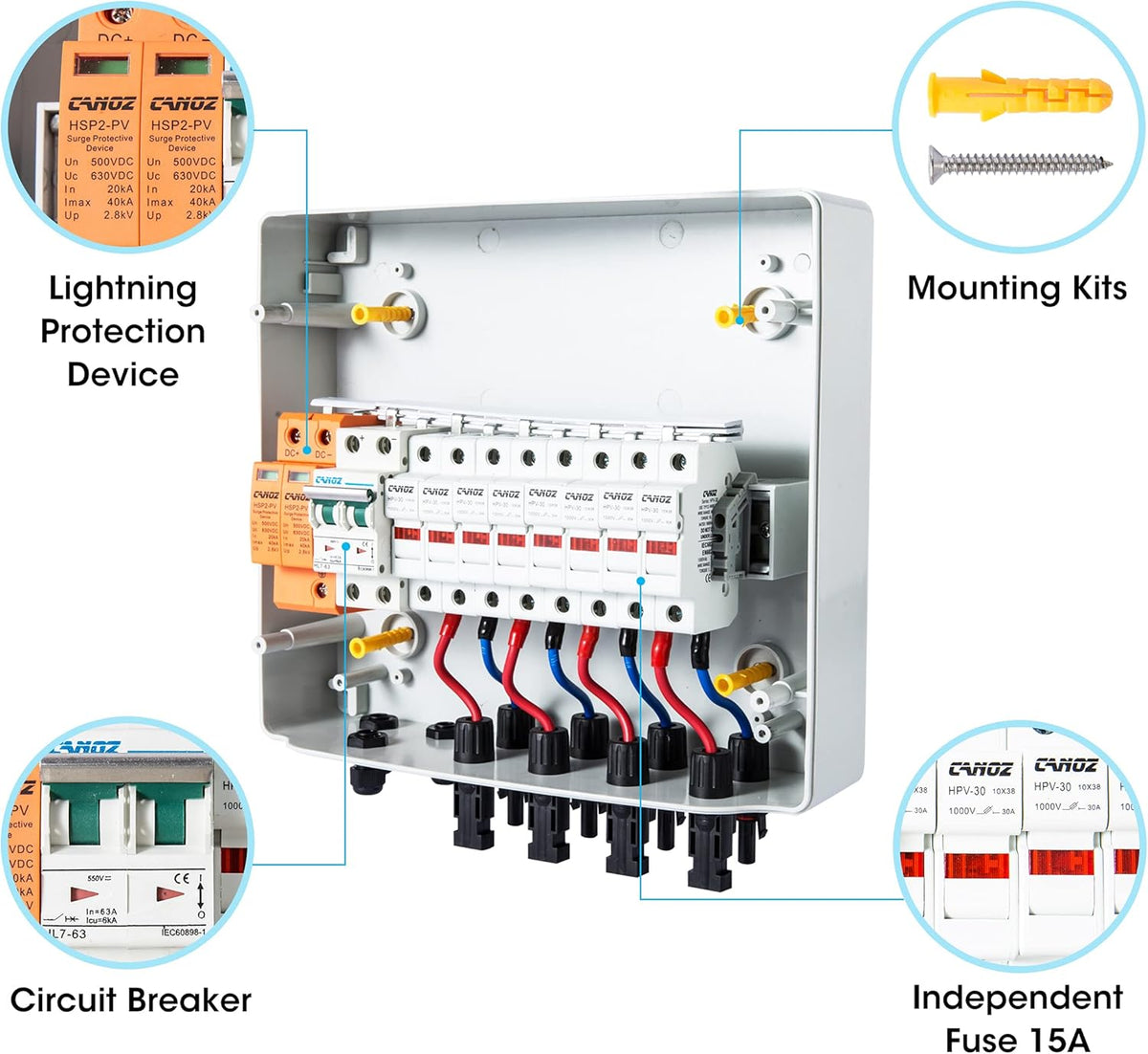

Reliable Electric Safety with 8pcs individual 15A DC Fuse, 63A Circuit Breaker, 2.8KV Surge/Lightning Protector/Arrester (2P,20-40kA), Reverse-Current Protecting.

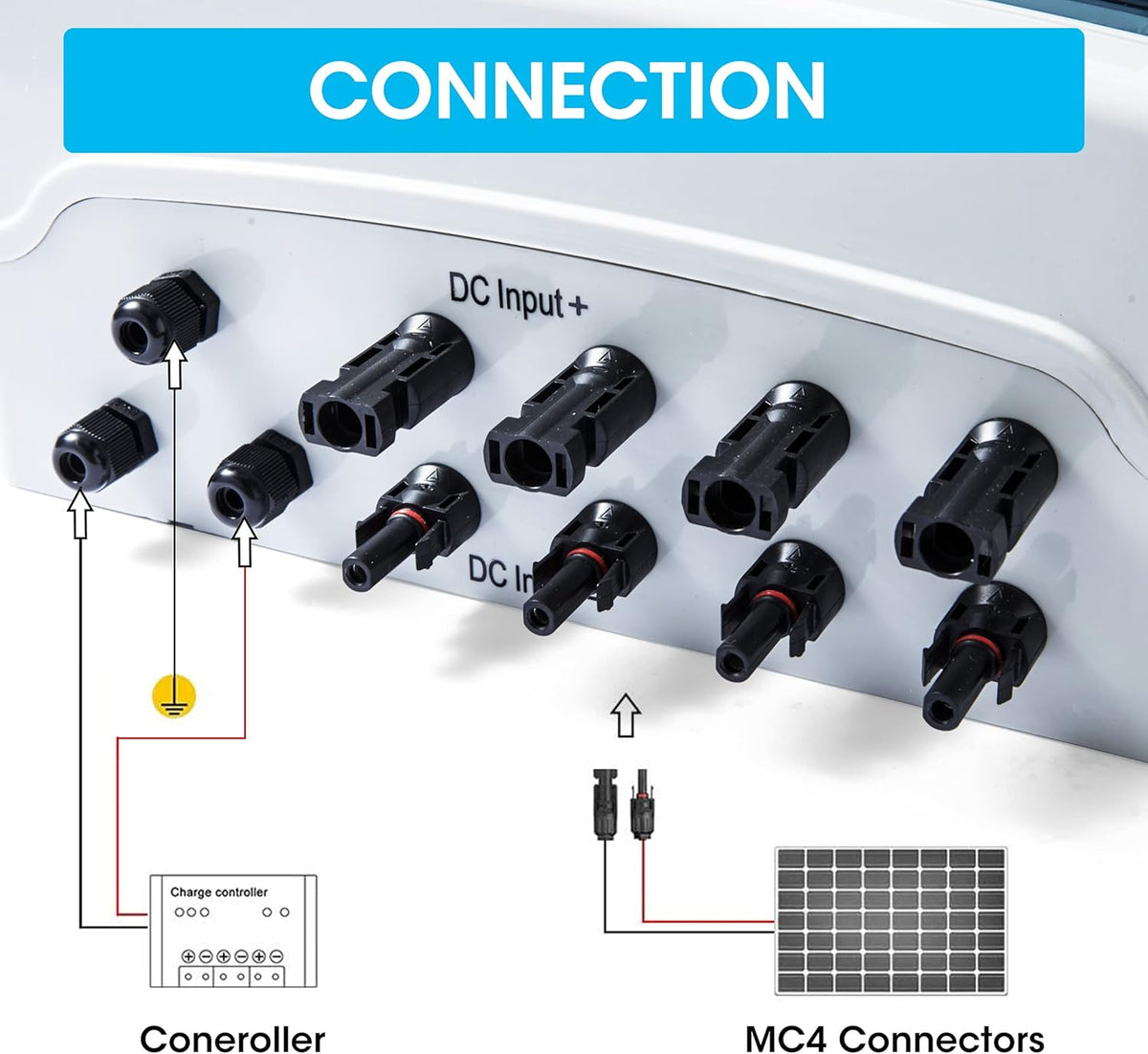

Plug and Play: All wires are well connected inside the PV Combiner Box. Output DC+, DC- and ground need to be fixed on the Circuit Breaker and Surge Protective Device.
4 Strings allowed, Max 700W for 12V system, 1400W for 24V system, 2800W for 48V system.
Suitable for Photovoltaic On-Grid/Off-Grid Solar Power Generation Systems. PV Array. RV Solar Power. 2 Year warranty for the whole unit.
